AT5 同步带模具表
| 型号 | 长度mm | 幅宽 | 齿数 |

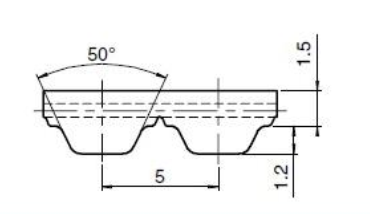

| AT5 Pitch=5mm |
|
|
|
| AT5-225 | 225.00 | 150 | 45 |
| AT5-255 | 255.00 | 150 | 51 |
| AT5-275 | 275.00 | 150 | 55 |
| AT5-280 | 280.00 | 150 | 56 |
| AT5-300 | 300.00 | 150 | 60 |
| AT5-330 | 330.00 | 150 | 66 |
| AT5-335 | 335.00 | 150 | 67 |
| AT5-340 | 340.00 | 150 | 68 |
| AT5-375 | 375.00 | 150 | 75 |
| AT5-390 | 390.00 | 150 | 78 |
| AT5-420 | 420.00 | 150 | 84 |
| AT5-450 | 450.00 | 150 | 90 |
| AT5-455 | 455.00 | 150 | 91 |
| AT5-480 | 480.00 | 150 | 96 |
| AT5-500 | 500.00 | 150 | 100 |
| AT5-525 | 525.00 | 150 | 105 |
| AT5-545 | 545.00 | 150 | 109 |
| AT5-600 | 600.00 | 150 | 120 |
| AT5-610 | 610.00 | 150 | 122 |
| AT5-620 | 620.00 | 150 | 124 |
| AT5-630 | 630.00 | 150 | 126 |
| AT5-660 | 660.00 | 150 | 132 |
| AT5-665 | 665.00 | 150 | 133 |
| AT5-695 | 695.00 | 150 | 139 |
| AT5-710 | 710.00 | 150 | 142 |
| AT5-720 | 720.00 | 150 | 144 |
| AT5-750 | 750.00 | 150 | 150 |
| AT5-780 | 780.00 | 150 | 156 |
| AT5-825 | 825.00 | 150 | 165 |
| AT5-860 | 860.00 | 150 | 172 |
| AT5-890 | 890.00 | 150 | 178 |
| AT5-900 | 900.00 | 150 | 180 |
| AT5-950 | 950.00 | 150 | 190 |
| AT5-975 | 975.00 | 150 | 195 |
| AT5-1050 | 1050.00 | 150 | 210 |
| AT5-1075 | 1075.00 | 150 | 215 |
| AT5-1125 | 1125.00 | 150 | 225 |
| AT5-1380 | 1380.00 | 150 | 276 |
| AT5-1500 | 1500.00 | 150 | 300 |
| AT5-1520 | 1520.00 | 150 | 304 |
| AT5-1750 | 1750.00 | 150 | 350 |
| AT5-2000 | 2000.00 | 150 | 400 |
同步带轮尺寸图：
T2.5 型同步带轮尺寸表 T5 型同步带轮尺寸表 T10 型同步带轮尺寸表 T20型同步带轮尺寸表
MXL型同步带轮尺寸表 XL型同步带轮尺寸表 L型同步带轮尺寸表 H型同步带轮尺寸表 XH型同步带轮尺寸表 XXH型同步带轮尺寸表
3M 型同步带轮尺寸表 5M 型同步带轮尺寸表 8M 型同步带轮尺寸表 14M 型同步带轮尺寸表
同步轮齿面宽度尺寸参考表
